Many manufacturers generate mountains of data every day, yet still can't answer basic questions like "which machine caused today's downtime?" in real time. The Manufacturing Leadership Council found that 70% of manufacturers still enter at least some data manually, and 68% rely on spreadsheets to analyze it, according to their 2024 M2030 survey. That's not a data problem. It's a visibility problem.
This guide explains how IoT-based data acquisition systems pull information from connected and legacy equipment, move it securely across edge and network layers, and turn raw signals into decisions. We'll cover architecture, real manufacturing use cases, how to pick a system, and where implementations tend to go sideways.
Key Takeaways
- IoT-based data acquisition unites sensors, edge hardware, connectivity, storage, and analytics in one system.
- Reliability hinges on signal quality, protocols, buffering, cybersecurity, and integration—not collection alone.
- Start with one KPI (downtime, OEE, quality, or energy) before adding sensors.
- Connected manufacturers report 10%–20% higher production output (Deloitte 2025).
What Is an IoT-Based Data Acquisition System?
Data acquisition, at its simplest, means measuring a physical condition and converting it into digital data you can store, view, or act on. National Instruments describes a traditional DAQ system as sensors feeding measurement hardware feeding a computer with software. That stack is the foundation.
An IoT-based DAQ system builds on it with network identity, remote access, event handling, and cloud or centralized storage. Instead of one machine talking to one local computer, dozens or hundreds of assets report into a shared platform that plant managers, maintenance teams, and executives can all see.
How It Differs From Related Systems
People often confuse DAQ with adjacent technologies. Here's the distinction:
- Data loggers mainly store readings for later retrieval—useful, but passive. Dewesoft's comparison notes a logger is a DAQ device, not a full DAQ system.
- SCADA focuses on supervisory monitoring and control, often across dispersed assets like pipelines, per NIST's definition.
- MES manages production execution—dispatching work, tracking work-in-progress, enforcing quality steps.
- IoT-based DAQ sits underneath all of these, acquiring and transporting data from distributed assets into plant- or enterprise-scale monitoring and analytics.
What Gets Acquired
A typical manufacturing deployment pulls in signals such as:
- Machine status, cycle time, and part counts
- Temperature, pressure, vibration, and current draw
- Energy use, alarms, and quality measurements
- Operator inputs and maintenance events
Raw numbers aren't worth much alone. A timestamped vibration reading becomes useful once it's tied to a specific asset, work order, shift, and product recipe. Vistrian's FactoryLOOK, for example, connects machines, metrology tools, and IIoT devices so this context-rich data feeds near-real-time analytics instead of isolated log entries.
How IoT-Based Data Acquisition Works: Architecture and Data Flow

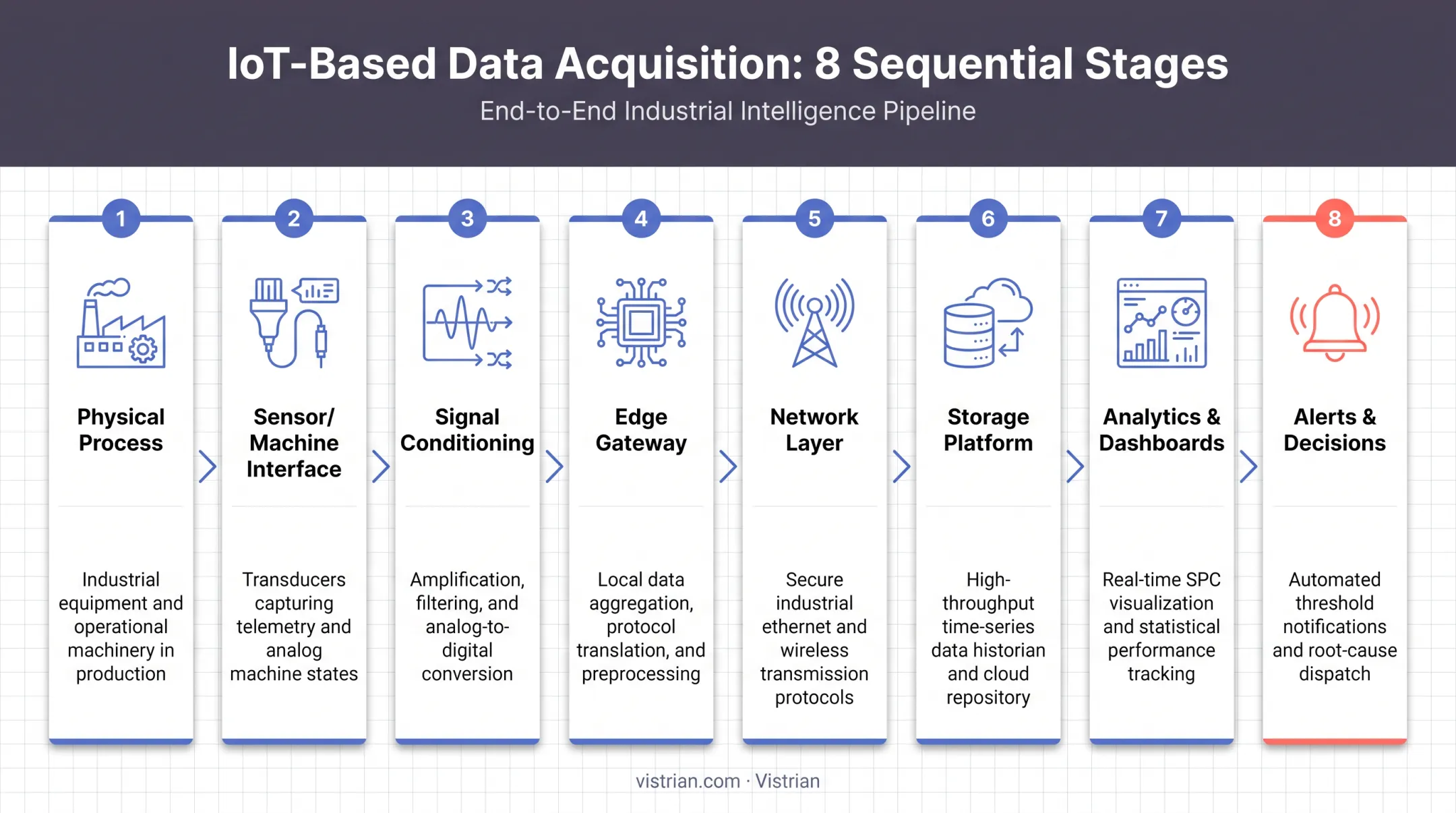

An IoT-based data acquisition system moves plant-floor signals from machines to decisions in a defined path. The flow generally runs: physical process → sensor or machine interface → signal conditioning → edge gateway → network layer → storage platform → analytics and dashboards → alerts or decisions.
Devices and Sensing
Common inputs include temperature, pressure, vibration, proximity, photoelectric, current, flow, humidity, and encoder sensors. New sensors aren't always necessary. Existing PLCs, CNCs, robot controllers, meters, and machine logs often already hold the data you need.
For older equipment without digital interfaces, retrofit sensors bridge the gap. Vistrian's Manufacturing Suite is built to integrate with legacy controllers as old as 40 years. When direct access isn't possible, IIoT sensors capture the missing readings instead.
Signal Handling and Edge Processing
Raw sensor signals rarely arrive clean. NI's signal conditioning tutorial identifies amplification, filtering, isolation, excitation, and linearization as standard steps before a signal is reliably usable.
Sampling rate matters too. Undersample a signal and you get aliasing—a false lower-frequency artifact that misrepresents what's actually happening on the machine. The general rule, per IEEE's data acquisition guidance, is a minimum sampling rate of twice the highest frequency of interest.
At the edge, systems also handle:
- Timestamping and normalization
- Local aggregation before transmission
- Rule execution (flagging anomalies before data even leaves the machine)
Connectivity and Protocols
Wired options (Ethernet, industrial Ethernet) and wireless options (Wi-Fi, cellular, low-power wireless) each fit different plant conditions. Protocol choice drives latency, security, and whether legacy equipment can join the same data path:
| Protocol | Best Fit |
|---|---|
| OPC UA | Secure, standardized data modeling; often paired with MQTT for transport |
| MQTT | Lightweight publish/subscribe for constrained IoT devices |
| Modbus | Legacy device communication; widely supported |
| Industrial Ethernet | High-bandwidth, real-time control networks |
OPC UA and MQTT are a common pairing for industrial IoT expansion, as noted by the OPC Foundation.
The right choice depends on latency needs, distance, legacy compatibility, and plant conditions—not which protocol is trendiest.
Storage and Turning Data Into Value
Systems typically use local buffering, on-prem servers, cloud storage, or a hybrid mix. Store-and-forward logic matters here: if the network drops, data queues locally and syncs once the connection returns, rather than vanishing.
Once stored with proper timestamps and asset tags, data feeds OEE calculations, SPC charts, trend analysis, and anomaly detection.
Vistrian FactoryLOOK's rules engine watches incoming data and fires alerts on predefined thresholds. A rising vibration trend on a conveyor motor, for example, can open a maintenance ticket while the belt is still running.
Manufacturing Applications and Benefits
Real-time machine and event data unlocks several high-value plant-floor use cases.
Downtime, Throughput, and OEE
Tracking machine state continuously exposes bottlenecks, idle time, and cycle-time drift long before a shift report would.
In one FactoryLOOK deployment for a North American cocoa processor, the system pulled roughly 20 parameters per production tool at about one reading per second, unifying an existing SCADA system with other plant software on a single platform. Engineers traced the true bottleneck to plumbing between refiners and holding tanks. That insight helped the customer avoid more than $1 million in unnecessary capital spending, and management projected an OEE gain of over 20%.
Maintenance and Predictive Insights

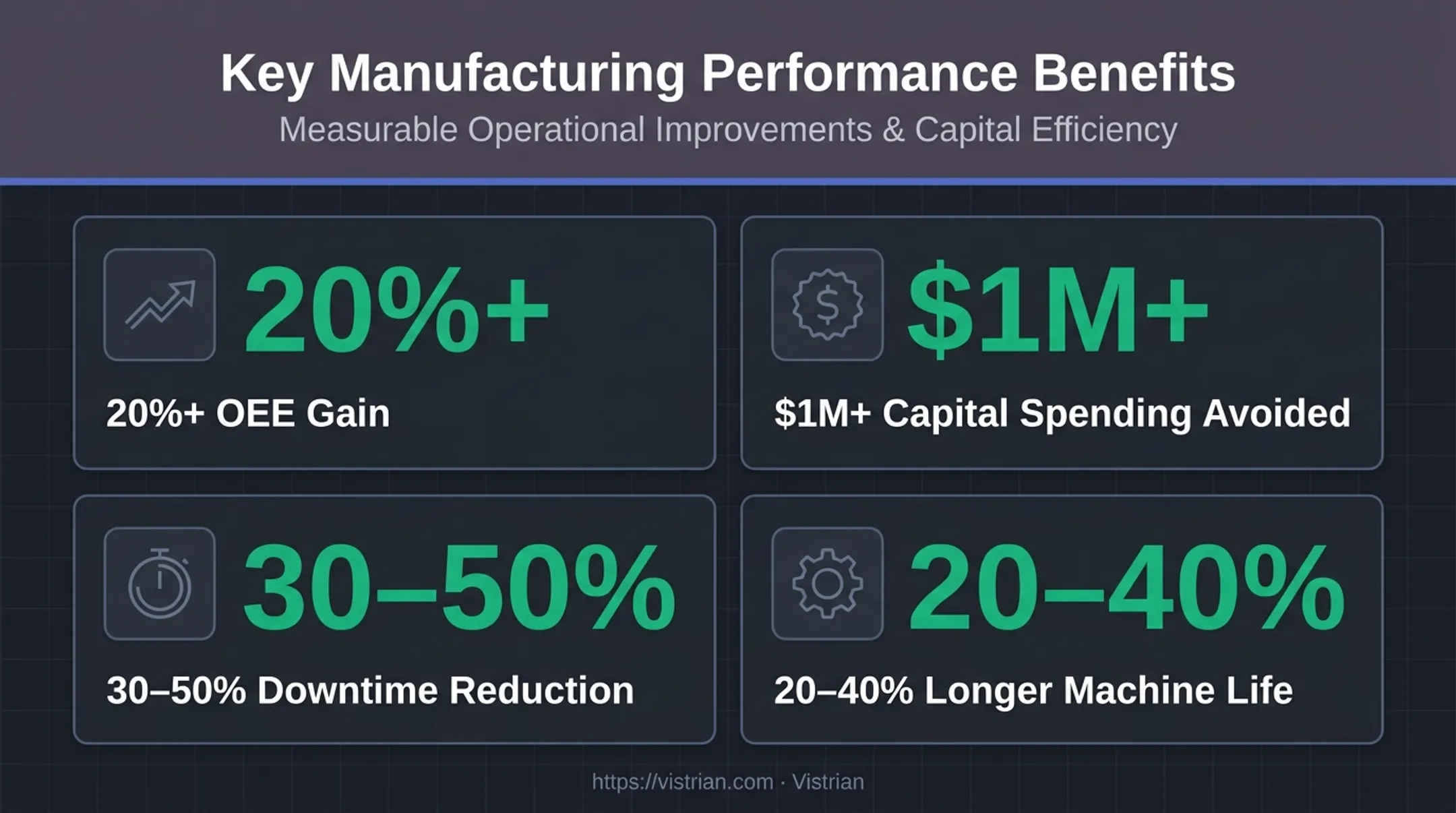

The same high-frequency signals that feed OEE also power condition monitoring and runtime-based preventive maintenance, which cut unplanned failures. McKinsey reports predictive maintenance typically cuts downtime by 30%–50% and extends machine life by 20%–40%, based on their analysis of manufacturing analytics programs. FactoryLOOK integrates with Vistrian's Maintenance Suite, pulling machine, sensor, and PLC data to support condition-based work.
Quality, Traceability, and Beyond
Process data tied to specific lots or work orders supports SPC and root-cause analysis when a batch drifts out of spec. Additional use cases include:
- Energy monitoring across equipment and facility assets
- Historian-backed compliance checks—one customer used FactoryLOOK historian data to verify holding-tank temperature limits and avoid recall exposure
- Event and alarm Pareto analysis that improved a robotic packing line's productivity within days
FactoryLOOK and Vistrian's Manufacturing Suite pull this data from controllers, logs, databases, and IIoT sensors to support real-time visibility and analytics. They complement your control system, MES, and safety systems rather than replacing them.
How to Design and Implement an IoT Data Acquisition System
Jumping straight to sensors is the most common mistake. Design the system around the decision you need to improve, then work backward to data, architecture, and rollout.
Define the Objective First
Before evaluating any vendor, answer:
- What decision needs better data? Examples: downtime response, OEE improvement, quality escapes, maintenance timing.
- Who needs the information, and how fast? An operator needs alerts in seconds; an ops leader might review weekly trends.
- What's the pilot scope? Pick one bottleneck, one recurring downtime cause, or one problem line—not the whole plant.
Build a Measurement Inventory
Catalog what you already have before buying anything new:
- Machines and controllers on the floor
- Existing sensors and IIoT devices
- Logs, historians, and databases
- Manual context operators still track on paper or spreadsheets
Separate sources you can access today from those that need new hardware or integration work. This step alone often shows that half your "missing" data already sits in a PLC nobody has tapped.
Set Data Quality Standards
Define acceptable accuracy, timestamp consistency, sampling frequency, and uptime before deployment. Timestamp synchronization is non-negotiable: NIST's guidance on IEEE 1588 covers clock-sync requirements because mismatched timestamps across machines quietly corrupt root-cause analysis.
Plan Cybersecurity Early, Not Later
OT security isn't optional. NIST's Guide to Operational Technology Security recommends:
- Network segmentation between IT and OT systems
- Least-privilege access controls
- Encryption in transit and at rest
- Documented incident response and recovery plans
Vistrian's approach reflects similar principles: encryption at rest and in transit, certificate-based device identity, role-based access, network segmentation, and audit logging.
Choose Architecture and Roll Out in Stages
Evaluate vendors on practical fit, not feature lists alone:
- Legacy controller and protocol compatibility
- Offline buffering when connectivity drops
- Total cost of ownership across pilot and scale-up
Look for platforms that sit on top of acquired manufacturing data and deliver OEE, throughput, utilization, yield, and root-cause analysis without a full system rebuild—Vistrian Analytics is built for that path.

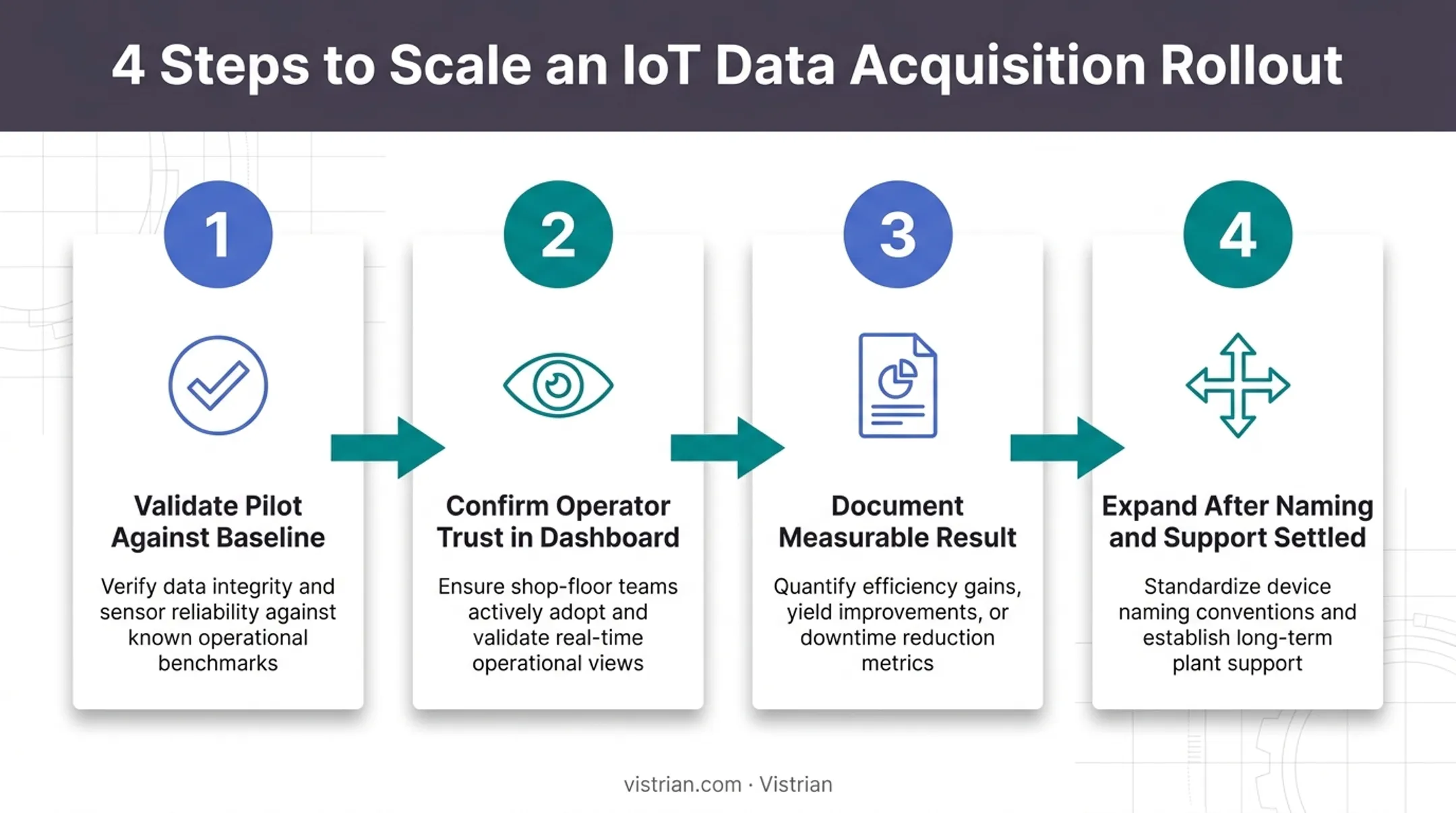

Once you've picked a direction:
- Validate a small pilot against baseline measurements
- Confirm operators actually trust the numbers on the dashboard
- Document the measurable result
- Expand only after naming conventions and support ownership are settled
Vistrian deployments typically take 3 to 4 weeks depending on scope, with clients reporting average payback periods under a year.
Frequently Asked Questions
What are the top IoT platforms?
There is no universal ranking. The right platform depends on your industrial connectivity needs, edge processing requirements, and existing systems. Compare vendor capabilities against your manufacturing use case before you choose.
What is an IoT-based data acquisition system?
An IoT-based data acquisition system captures machine or sensor data, processes it at the edge, and sends it over a network into storage and analytics. The goal is turning raw signals into usable operational information for teams and business systems.
What are common examples of IoT devices?
Common manufacturing examples include industrial sensors (vibration, temperature, pressure), smart meters, connected controllers and gateways, asset trackers, and equipment-monitoring cameras.
How does an IoT-based data acquisition system work?
A physical measurement or machine event is conditioned, processed at the edge, transmitted, and stored. From there it feeds analytics dashboards, alerts, or automated workflows for the right team.
How do manufacturers choose an IoT data acquisition system?
Start with your target KPI, then evaluate equipment compatibility, sensor needs, cybersecurity, connectivity options, scalability, and total cost of ownership. Implementation support and integration with existing systems matter as much as the feature list.
