In most factories, these questions get answered through a patchwork of spreadsheets, whiteboards, paper travelers, and side-channel emails. That patchwork works, until it doesn't.
A missed handoff between shifts, a quality hold nobody escalates, a machine down for two hours before anyone notices, each of these gaps compounds into lost output and unclear accountability.
This article breaks down what factory manufacturing workflow management software actually does, why disconnected systems create blind spots, and how to evaluate and roll out a platform without disrupting the plants you're trying to improve.
Key Takeaways
- Unifies production, quality, maintenance, and approvals in one operational record—complements ERP and MES, does not replace them.
- Map and simplify the process first; software will not fix an undefined workflow.
- Rank functional fit, connectivity, and ease of use above price when you evaluate tools.
- Pilot one high-value workflow with a documented baseline before scaling across plants.
Understanding Factory Manufacturing Workflow Management
Factory manufacturing workflow management software is a digital system that maps, sequences, and monitors the repeatable steps that move work from production planning through finished goods. Instead of tracking status in memory or a shared spreadsheet, it assigns owners, records approvals, and flags exceptions automatically.

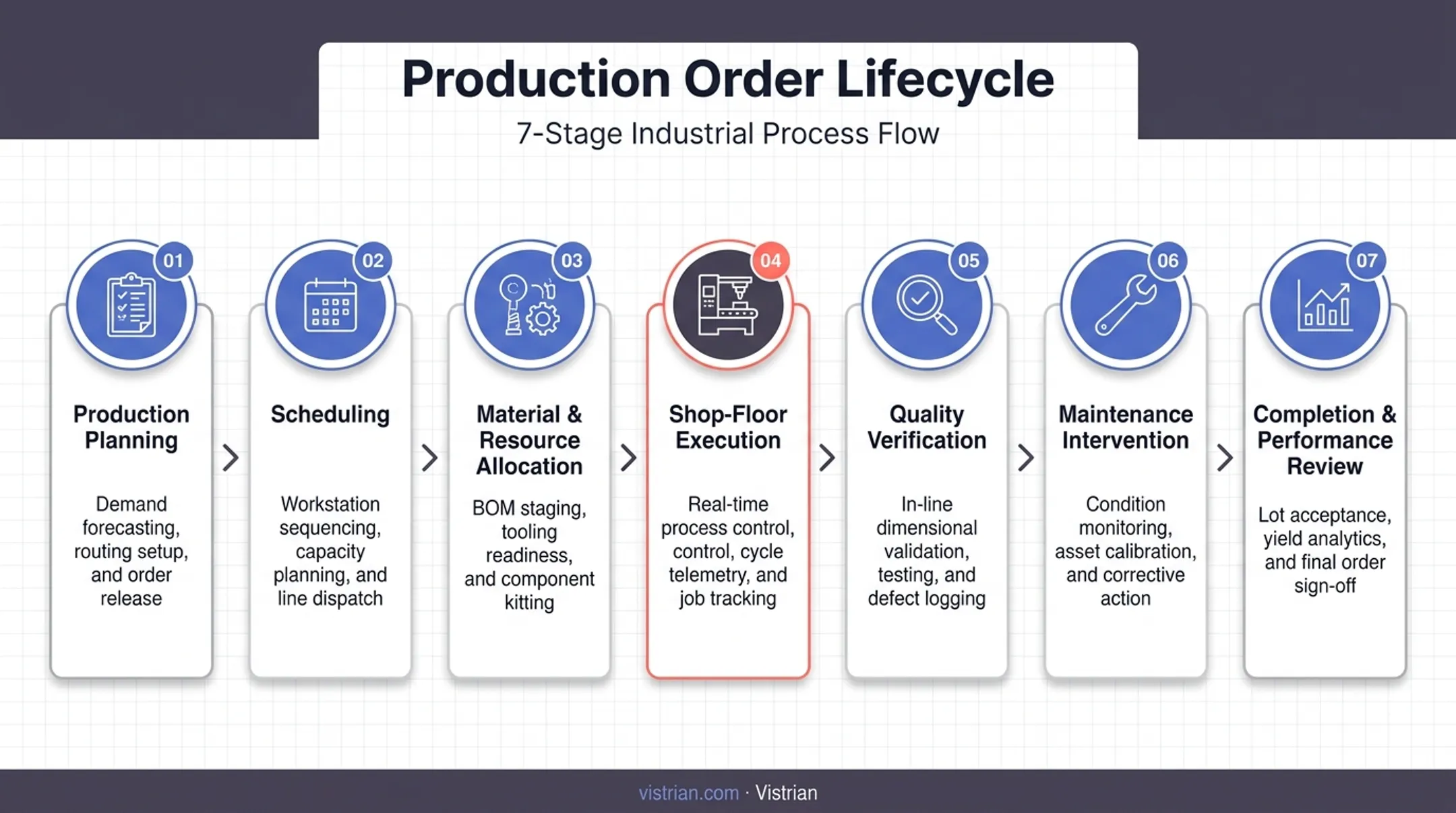

A typical workflow lifecycle looks like this:
- Production planning: orders are released with specs and due dates.
- Scheduling: orders are assigned to lines, machines, and shifts.
- Material and resource allocation: parts, tooling, and labor are confirmed available.
- Shop-floor execution: operators run the job and log parameters.
- Quality verification: in-process and final checks confirm conformance.
- Maintenance intervention: breakdowns or preventive maintenance get logged and resolved.
- Completion and performance review: the order closes and data feeds KPIs.
How Workflow Software Differs From ERP, MES, CMMS, and IIoT
These categories overlap, but each answers a different question:
| System | Primary question it answers |
|---|---|
| ERP/MRP | What do we need to make, and what materials do we have? |
| MES | What's happening on the shop floor right now, and what did we record? |
| CMMS | What maintenance work is due or overdue? |
| IIoT platform | What data can we pull directly from machines and sensors? |
| Workflow management | Who owns the next step, and what happens if it's late? |
The ISA-95 standard places business planning at Level 4 and shop-floor execution systems like MES at Level 3, connected by defined data exchange. Workflow software typically sits inside or alongside that Level 3 layer, coordinating tasks and exceptions rather than replacing every function ERP, MES, or CMMS already handle.
A Shared Record, Not Just a Status Board
The software builds one operational record for each order—not a static status board. That record typically:
- Assigns task owners and sequences the next steps
- Timestamps approvals and preserves history for audits
- Escalates automatically when work drifts past a threshold
Example: A production order is scheduled for Line 3, and the machine controller confirms the tool is running within spec. Midway through the run, an in-process inspection flags a dimension drifting toward the tolerance limit.
The system alerts the quality technician, who starts a corrective action. After the supervisor documents the fix and the re-check passes, the order releases—with machine data and human sign-offs tied to the same order number.
Why Factories Need Workflow Management Software
When production data lives in disconnected spreadsheets, whiteboards, and email threads, plants create their own blind spots. Every handoff introduces a chance for something to get lost.
Common consequences:
- Duplicate data entry across shifts, with no single source of truth
- Unclear accountability when a task falls through the cracks
- Delayed escalation because nobody sees a problem until it has already cost hours of output
- Slow approvals that stall changeovers or quality holds
- Inconsistent procedures between shifts or plants running the same product
- Limited visibility across multiple plants, even when comparing similar lines
Industry estimates put the average cost of unplanned downtime at more than $260,000 per hour in some manufacturing environments. Multiply that across a handful of unplanned stops a month, and the case for visibility writes itself.
Workflow management software ties directly to metrics plant leaders already track: equipment utilization, OEE, throughput, cycle time, first-pass yield, maintenance response time, and delivery reliability. Those gains only show up when the process underneath is clear.
Software Won't Fix an Undefined Process
Automating a broken process just makes the mess move faster. Before configuring any system, factories should:
- Map the current workflow, step by step, including informal workarounds.
- Remove steps that don't add value or exist only because "that's how we've always done it."
- Assign clear ownership for each stage before it goes live in software.
Skip this groundwork, and even the best platform will just digitize confusion.
Essential Capabilities and Factory Use Cases
Capabilities Worth Evaluating
When comparing platforms, check for these core capabilities rather than trusting a features page:
- Workflow mapping and configurable stages for production orders, quality events, maintenance, engineering changes, and approvals
- Real-time dashboards and escalation rules tailored to supervisors, plant managers, quality teams, and enterprise leaders
- Machine and equipment data collection through controllers, logs, databases, standard protocols, and IIoT sensors, including legacy or mixed-vendor equipment
- KPI and analytics tools covering OEE, utilization, throughput, yield, cycle time, and downtime root-cause analysis
- Digital records and audit trails, including e-forms, checklists, and controlled documentation
- Integration options for ERP, MES, MRP, CMMS, QMS, historians, databases, and APIs

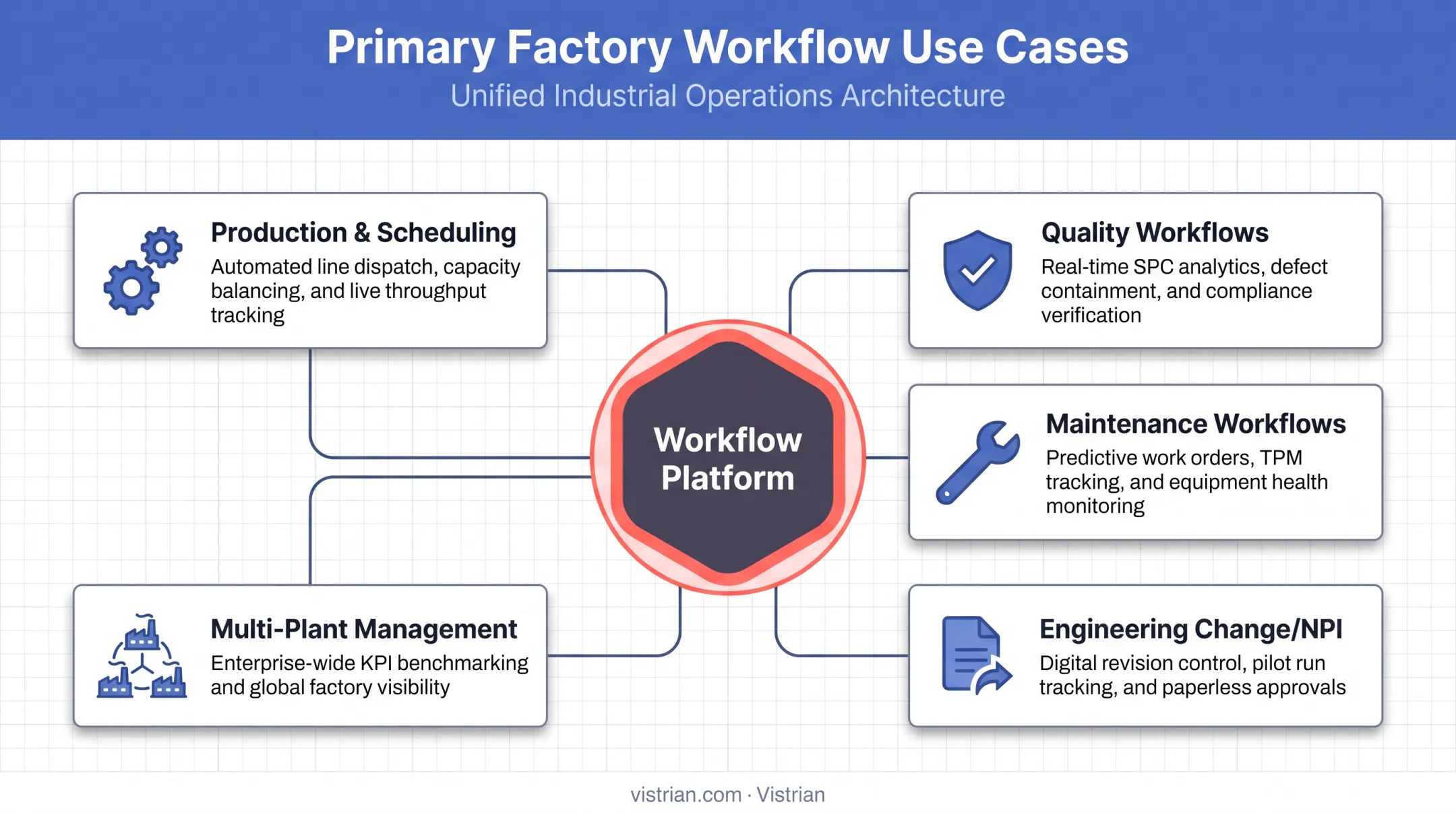

Where These Capabilities Show Up on the Floor
Five use cases cover most of what factories actually need:
- Production order and scheduling workflows — machine assignment, material readiness, priority changes, and completion status
- Quality workflows — inspections, nonconformances, corrective actions, approvals, and release decisions
- Maintenance workflows — equipment events tied to preventive maintenance, breakdown response, spare parts, and history
- Engineering change and NPI workflows — revision control, approvals, affected assets, and cross-department communication
- Multi-plant management workflows — shared KPI definitions across sites, with room for each plant’s process differences
Those five workflows only pay off when data collection, analytics, and floor access work as one system. Vistrian’s Manufacturing Suite is one example of how the pieces connect.
FactoryLOOK pulls near-real-time equipment and process data from machine controllers, logs, databases, and IIoT devices—including older machines never built with a digital interface. That feed powers Vistrian Analytics, which tracks OEE, throughput, utilization, yield, and cycle time at machine, line, or shift level.
Access at the Point of Work
Role-based or mobile access lets supervisors and technicians log information where the work happens, not after walking back to a terminal. Permissions should limit what each role sees and edits, so an operator isn't looking at cost data and a finance analyst isn't editing a maintenance order.
Before trusting vendor claims on offline access, mobile apps, security certifications, AI-driven predictions, or regulatory compliance, ask for documentation. Verify each claim against your plant’s actual requirements.
How to Choose the Right Factory Workflow Management Software
Start With a Requirements Audit
Before evaluating any vendor, document:
- Workflows that need improvement, and why
- Roles involved, from operators to plant managers
- Current systems (ERP, MES, CMMS, spreadsheets)
- Equipment types and existing data sources
- Pain points and the business outcomes you want
Evaluate Connectivity and Analytics Depth
Ask vendors directly:
- Can it connect to legacy controllers, IIoT sensors, databases, logs, and historians over standard industrial protocols?
- How is data normalized, stored, secured, and mapped to machines, lines, and shifts?
- How is OEE calculated, and how is downtime categorized?
- Can you drill from enterprise dashboards down to a single machine or event?
Those questions surface the two criteria buyers weight most. A 2013–2014 LNS Research survey of 150 manufacturing executives found 49% ranked functional fit first, then software cost (39%), ease of integration (37%), and ease of use (27%). Fit and integration still beat a long feature list.
Test Usability Before You Buy
Have non-technical staff try to configure a workflow stage, form, or alert without a developer. If it takes a specialist to make a simple change, expect that bottleneck to repeat for years.
Check Total Cost of Ownership
| Cost category | What to confirm |
|---|---|
| Licensing | Per-user, per-line, or per-plant? |
| Implementation | One-time or bundled? |
| Integration | Included, or billed separately? |
| Training | Included sessions or hourly? |
| Expansion | Cost to add users, sensors, or sites |
Confirm whether the platform can start with one line or plant and scale up without forcing a disruptive, all-at-once rollout.
Run a Structured Proof of Concept
Pick one representative workflow. Agree on success criteria up front—response time or data-capture completeness, for example. Test the platform against real plant conditions before you sign anything.

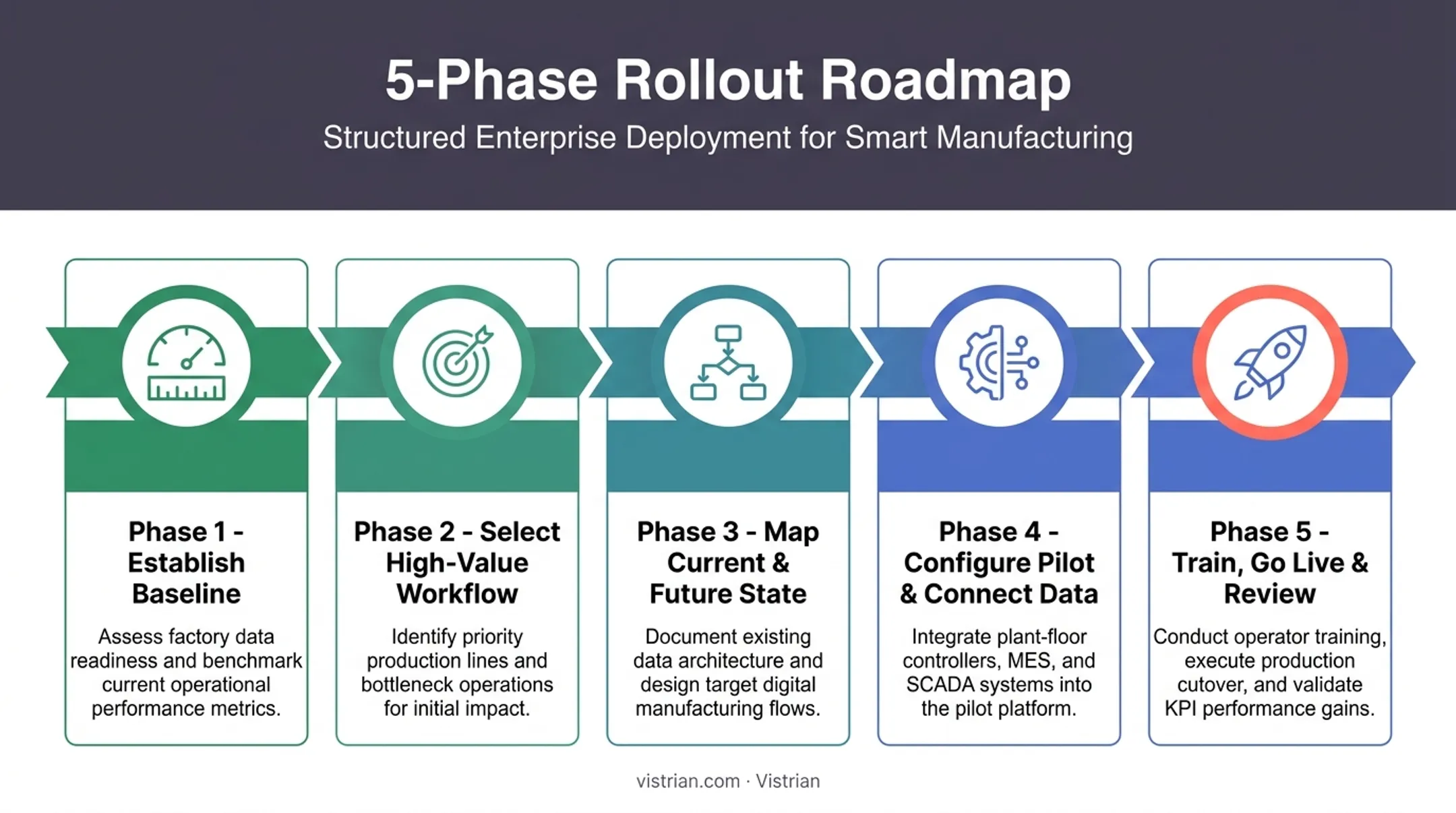

Implementing and Measuring a Manufacturing Workflow Platform
Roll Out in Phases
- Establish a baseline for cycle time, downtime, and yield before changing anything.
- Select one high-value workflow with clear pain and measurable upside.
- Map current and future state to document what happens now versus what should happen.
- Configure the pilot, connect data sources, and set alerts.
- Train users, go live, and review results before expanding further.
Assign Clear Ownership
Define roles up front: plant leadership, operations, quality, maintenance, IT, supervisors, operators, and the vendor. Ambiguous ownership is usually where escalation breaks down.
Track the Right Metrics
Set baseline and target values for the metrics that matter to the pilot:
- Downtime response time and schedule adherence
- Cycle time, first-pass yield, and OEE
- Rework rate and maintenance completion rate
- Approval time and data-capture completeness Document how each metric is calculated, not just the number, so comparisons hold up across shifts and plants.
Manage Adoption Risk
- Involve shop-floor users while designing the workflow, not after launch
- Limit data-entry fields to what's actually necessary
- Provide role-specific training instead of one generic session
- Build a clear process for handling exceptions, because they will happen Honest measurement is what makes those gains visible. Tulip's 2025 case study on TICO Tractors found that after moving from paper tracking to digital work instructions and mobile quality checks, quality-inspection and rework time dropped 50–60%. The team compared time-on-task before and after digitization instead of relying on projections.
Where Vistrian Fits in Factory Workflow Management
Vistrian builds modular, cloud-enabled smart manufacturing software for factories that need real-time visibility and a structured path to continuous improvement. The company's roots go back to 2003, working inside semiconductor, data storage, and electronics manufacturing, environments where equipment uptime and process control aren't optional.
The Manufacturing Suite
Vistrian's Manufacturing Suite combines equipment integration, data acquisition, IIoT connectivity, e-Recording, historian functions, analytics, statistical process control, virtual factory modeling, dashboards, reporting, and alerts in one modular platform.
FactoryLOOK, the suite's data-acquisition layer, connects to PLCs and PC-based controllers through standard industrial protocols. When a direct connection isn't available, it pulls data from logs or databases instead, which matters for plants running older equipment.
Vistrian Analytics turns that data into OEE, throughput, utilization, yield, and cycle-time metrics, with root-cause analysis to help teams see why a line is underperforming, not just that it is.
Who Tends to Get the Most Value
Documented deployments show the strongest fit for:
- Discrete manufacturing plants running CNC, assembly, or process equipment
- Semiconductor and electronics operations with capital-intensive tools that must stay qualified and running
- Plants with a mix of legacy and modern equipment needing one data layer across both
- Multi-plant operations that need centralized visibility without losing site-level detail

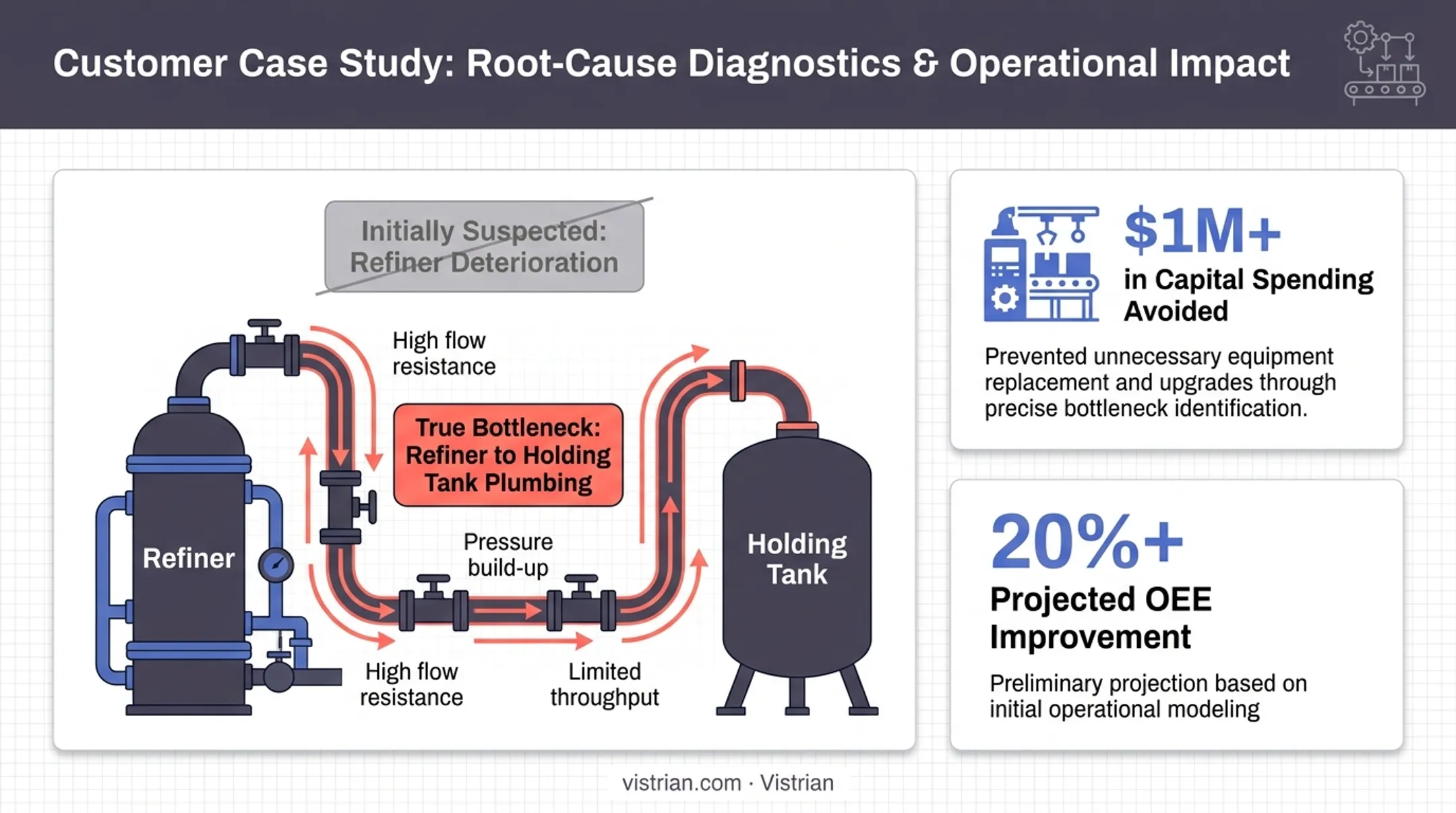

A Documented Customer Result
North America's largest cocoa processor and ingredient chocolate manufacturer implemented FactoryLOOK at one plant and used it to trace a persistent output bottleneck to plumbing between refiners and holding tanks, not refiner deterioration, as the team had initially suspected.
That finding reportedly helped the company avoid more than $1 million in unnecessary capital spending, and preliminary results led the manufacturer to project an OEE improvement of over 20%. That figure was a projection based on early data, not a guaranteed outcome, and results will vary by plant and process.
If your plant runs mixed legacy and modern equipment, review whether Vistrian's Manufacturing Suite or FactoryLOOK can connect to the systems you already run on the floor.
Conclusion: Build a Workflow That Turns Factory Data Into Action
Effective factory workflow management connects people, equipment, data, approvals, and improvement actions across the entire production lifecycle, not just one department's slice of it.
When you compare platforms, prioritize criteria that turn plant data into owned action:
- Clear workflow mapping with defined ownership
- Reliable connectivity to your actual equipment, old and new
- Analytics that go beyond a dashboard to root-cause detail
- Integration with the ERP, MES, and CMMS systems you already run
- Usability for the people who'll use it every shift
- Scalable deployment and metrics you can defend in a meeting
Start with one high-value workflow and a documented baseline. Prove it works, measure what changed, then expand across lines, plants, or the wider enterprise. If you need a modular path from machine connectivity to root-cause analytics and maintenance workflows, evaluate how Vistrian’s Manufacturing and Maintenance suites support that rollout without ripping out the systems you already run.
Frequently Asked Questions
What is the best software to track manufacturing processes?
The best option depends on your factory's workflows, equipment connectivity, required KPIs, integrations, and budget. Compare ERP, MES, CMMS, IIoT, and workflow capabilities against your needs rather than choosing by popularity.
What is factory manufacturing workflow management software?
It's a digital system that coordinates tasks, ownership, and approvals across production. It uses machine and process data, alerts, and records to monitor performance from planning through completion.
How does manufacturing workflow software differ from an MES or ERP?
ERP and MRP generally manage business and material planning, MES manages shop-floor execution and records, and workflow software coordinates cross-functional steps and exceptions between them. Most factories need integrations across all three.
What features should manufacturers look for in workflow management software?
Look for configurable workflow stages, real-time dashboards, equipment and IIoT connectivity, and KPI analytics. Also prioritize quality and maintenance workflows, audit trails, integrations, and usability for non-technical staff.
Can manufacturing workflow software connect to legacy machines?
Support varies by platform and should be validated during a technical assessment. Look for controllers, standard protocols, logs, databases, gateways, or IIoT sensors to bridge equipment without native connectivity.
How should a factory measure the ROI of workflow management software?
Track a baseline, then measure changes in downtime, OEE, throughput, yield, cycle time, rework, approval time, and maintenance response. Attribute results to the software only where the data supports a direct link.
