Introduction
Many manufacturers still run production with a mix of PLC screens, printed logs, and spreadsheets. A machine goes down, and someone has to walk the floor to figure out why before anyone can even start fixing it.
According to the Manufacturing Leadership Council's 2024 survey, 70% of manufacturers still enter production data manually. Another 44% say the amount of data they're expected to handle has at least doubled in the past two years.
That gap between what machines generate and what teams can actually use is the problem machine connectivity solves.
Machine connectivity links equipment, sensors, control systems, software, and the people running the plant floor. That link is what lets teams collect machine data, interpret it, and act on it—not merely plug a device into Wi-Fi.
This article covers the difference between a connection and connectivity, the technical building blocks behind it, the operational payoff, and a practical path US manufacturers can follow to get started.
Key Takeaways
- Machine connectivity feeds equipment data into production, maintenance, quality, and management workflows—not just a network link.
- Strong projects start with a business objective, not a technology purchase.
- Legacy and mixed-vendor machines connect via gateways, retrofit sensors, or IIoT devices without fleet replacement.
- Highest-value projects turn raw signals into contextualized data that drives operational action.
What Is Machine Connectivity?
Machine connectivity is the ability of machines and related systems to exchange data reliably, consistently, and securely, then route that data to the people and systems that need it.
Connection vs. Connectivity
Teams often use these terms interchangeably, but they mean different things:
- A connection is a single link between two devices or systems, such as a sensor wired to a PLC.
- Connectivity is the broader capability to connect multiple machines, data sources, applications, and people across the plant or enterprise.
Connectivity Is Not the Same as Monitoring
Monitoring collects machine status, counts, downtime, or condition data and shows it on a dashboard. That's useful, but it stops at the screen.
Connectivity carries that same data into MES, ERP, CMMS, quality, scheduling, analytics, and reporting systems, so other workflows can actually respond. A downtime event, for instance, can trigger a maintenance ticket instead of just lighting up a red bar on a chart.
One-Way and Two-Way Data Flow
- Unidirectional connectivity reads data from machines for monitoring, reporting, or analysis. Nothing flows back to the machine.
- Bidirectional connectivity sends approved context or instructions back to the machine or control system, subject to safety, cybersecurity, and operational review.
A simple unidirectional example: a CNC machine sends runtime and downtime data to a production platform. That data ties to a work order, updates an OEE dashboard, and flags maintenance when downtime exceeds a threshold.
Connectivity is not the same as remote control. Most manufacturers start with read-only data collection before considering anything more advanced.
How Machine Connectivity Works
The Data Path

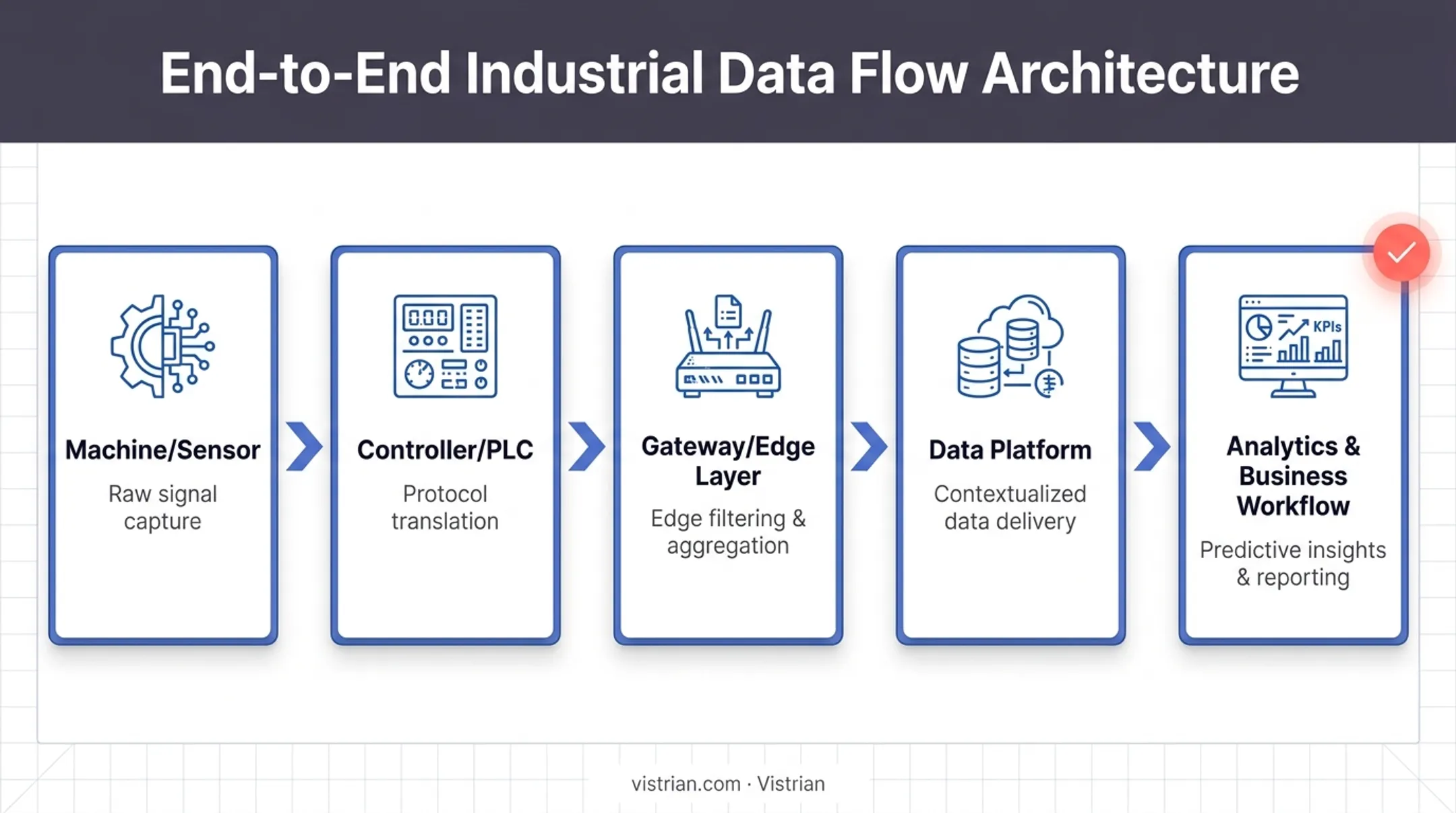

Machine data typically moves through five stages: the machine or sensor, a controller or PLC, a gateway or edge layer, a data platform, then analytics feeding into a business workflow. Each stage adds structure to raw signals.
Where the Data Comes From
Machine-side sources vary widely:
- PLCs, CNC controls, and robot controllers
- SCADA systems and machine logs
- Databases already storing process history
- Industrial sensors, meters, and stack lights
The available interface and signal quality depend heavily on the machine's age, manufacturer, controller type, and how well it was documented when installed.
Protocols and Connection Methods
No single protocol fits every machine. Common options include:
| Protocol | Best Suited For |
|---|---|
| OPC UA | Cross-vendor communication between controls, MES, and ERP |
| MQTT | Lightweight publish/subscribe messaging for IIoT devices |
| Modbus | Legacy serial and Ethernet-based industrial equipment |
| Industrial Ethernet (PROFINET, EtherNet/IP, EtherCAT) | Newer high-speed, deterministic networks |
| Fieldbus | Older devices needing shared-bus communication instead of point-to-point wiring |
Choose based on interoperability, data needs, security, latency, and what already runs on the plant floor.
Gateways and Edge Computing
Gateways translate protocols, normalize signals, filter noise, and buffer data during network interruptions. Without that layer, raw signals stay fragmented and drop offline whenever the network blips.
Local edge processing helps when:
- Low-latency decisions are required
- Signal volume is high
- Network resilience matters
- Sensitive data needs to stay inside the plant network
From Raw Signal to Useful Data
A raw "machine stopped" signal doesn't tell you much on its own. It needs context before anyone can act on it:
- Asset identity
- Product and work order
- Shift
- Planned vs. unplanned stop
- Reason code and timestamp
Consistent naming, units, and signal definitions are what make cross-machine and cross-site comparisons possible.
This is where Vistrian's FactoryLOOK and Manufacturing Suite come in. FactoryLOOK connects to controllers, machine logs, databases, and retrofit IIoT sensors, then normalizes that data before it reaches dashboards, analytics, or reporting tools.
Security and Governance
Connectivity introduces real cybersecurity considerations. NIST's Guide to Operational Technology Security recommends several practices for industrial environments:
- Network segmentation and zoning based on device location or function
- Restricted logical access following least-privilege principles
- Strong authentication and encryption for remote access, such as VPNs
- Routing enterprise-to-operations traffic through a DMZ
- Separate network segments for safety-critical systems
Skip these steps and you create security risk—and operators stop trusting the data the project was built to deliver.
Benefits of Machine Connectivity
Real-Time Production Visibility
Near-real-time machine data improves visibility into uptime, downtime, throughput, cycle time, yield, quality events, and bottlenecks. Teams stop reconstructing what happened yesterday and start seeing what's happening right now.
Smarter Maintenance Decisions
Reliable runtime, alarm, and condition data support preventive or condition-based maintenance instead of guesswork. Paired with FactoryLOOK, Vistrian's Maintenance Suite uses that live machine data to flag abnormal conditions and predict failures from actual equipment behavior—not a fixed calendar. Clients have cut equipment downtime by 20-50%.
Faster Root-Cause Analysis
Connected data lets teams compare machine events against product, process, shift, operator, and material information side by side. FactoryLOOK with VistrianMES builds a complete data trail. For some manufacturers, that has cut root-cause analysis from days to minutes.
Multi-Plant and Enterprise Value
Once individual plants are visible, the same connectivity scales across the enterprise. For multi-facility operations, it enables:
- Standardized KPIs across sites
- Centralized reporting for leadership
- Site-to-site performance comparisons
- Faster escalation when one plant lags others
Energy and Utilization Gains
The same data layer also surfaces energy waste. Connected production and energy feeds expose idling equipment, excess consumption, and inefficient operating patterns that usually go unnoticed. Vistrian's Manufacturing Suite applies the equipment integration already used for OEE tracking to energy optimization, so plants can spot waste without new capital equipment.
A Practical ROI Framework
Unplanned downtime alone costs industrial manufacturers an estimated $50 billion annually, according to Deloitte's 2024 predictive-maintenance research. Connectivity projects tend to pay off through:
- Reduced unplanned downtime
- Improved equipment utilization
- Avoided capital expenditure on new equipment
- Lower labor spent on manual data collection
- Faster, better-informed decisions Vistrian's FactoryLOOK implementation for North America's largest cocoa processor and ingredient chocolate manufacturer reported savings of over $1 million in avoided capital expenditure, with projected OEE improvement above 20%.

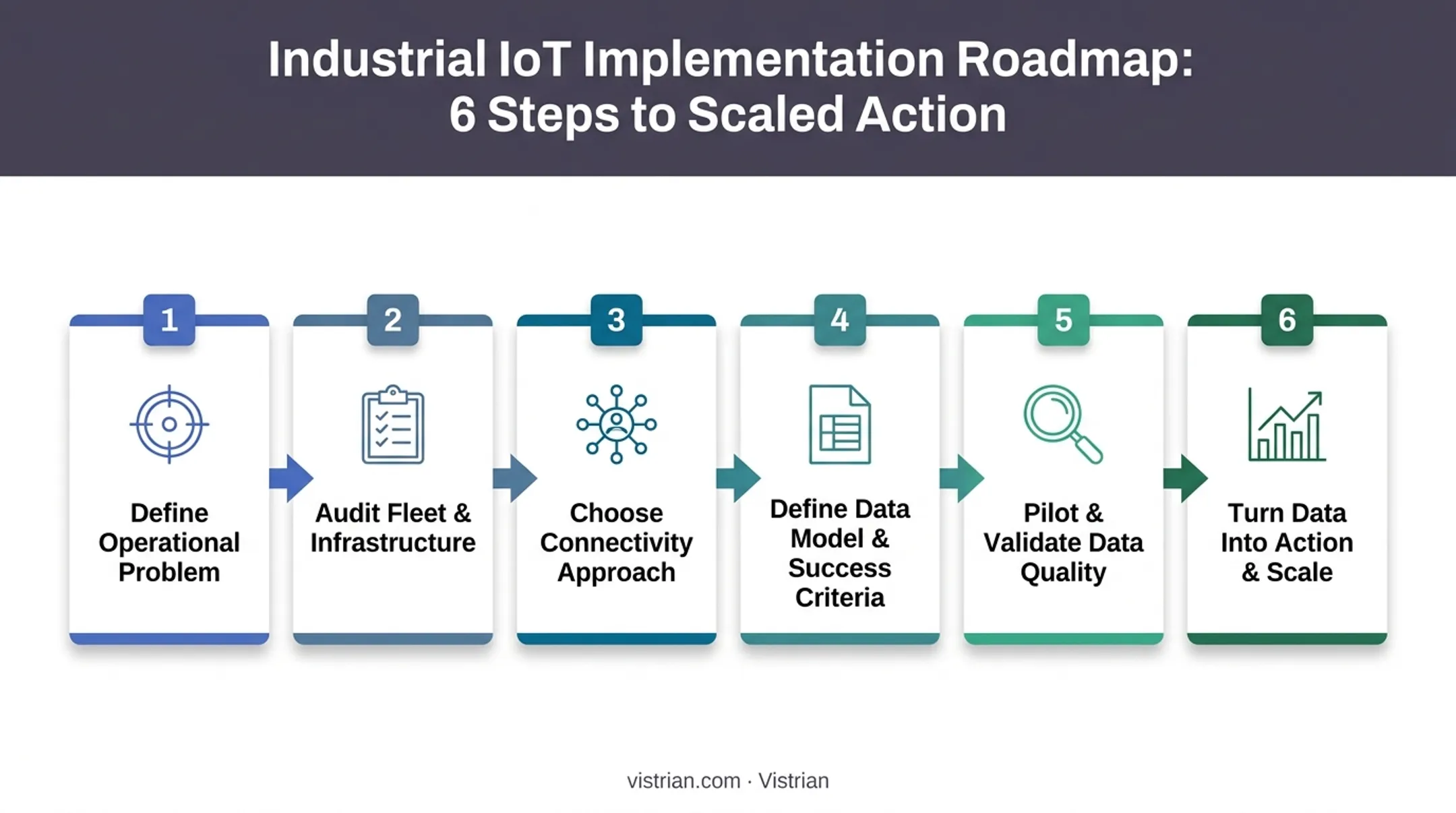

How to Implement Machine Connectivity
1. Start With a Defined Operational Problem
Pick one measurable use case, such as downtime visibility, OEE improvement, maintenance response, or quality traceability. A focused pilot is far easier to validate than trying to connect the entire fleet on day one.
2. Audit Your Existing Fleet and Infrastructure
Document machine types, manufacturers, controllers, interfaces, and network availability. Flag legacy equipment, undocumented controls, and machines that will need a gateway or retrofit sensor. Vistrian's Manufacturing Suite has been used to integrate controllers as old as 40 years, so age alone rarely disqualifies a machine.
3. Choose the Right Connectivity Approach
Compare the main connection paths:
- Direct controller connections
- Protocol gateways
- Edge software
- Database integration
- Retrofit IIoT sensors
Weigh each option against compatibility, scalability, cybersecurity, and whether you need cloud, on-premises, or both.
4. Define the Data Model and Success Criteria
Build a signal list that covers:
- Asset identity
- Run state and downtime
- Counts and cycle time
- Alarms
- Quality indicators and process parameters
Decide upfront how each signal gets named, timestamped, and used downstream.
5. Pilot and Validate Data Quality
Compare digitally captured values against trusted operator and quality records. Before you scale, watch for:
- Missing signals
- Duplicate events
- Incorrect timestamps
- Misclassified downtime
6. Turn Data Into Action, Then Scale
Feed connected data into dashboards, alerts, and root-cause tools instead of parking it in a static report. Vistrian Analytics, for example, applies that data to OEE, throughput, utilization, yield, and cycle time, with root-cause breakdowns built in.
Once the pilot proves out, expand with reusable templates, standard protocols, and a clear program owner. Vistrian clients typically report payback periods of under a year once the rollout moves past the pilot stage.
Conclusion: Turning Machine Data Into Manufacturing Visibility
Machine connectivity is an operational foundation. Treat it as core plant infrastructure, not a side IT project.
Value comes from a clear sequence:
- Connect equipment and collect signals
- Normalize the data and add production context
- Enable action across maintenance, quality, operations, and management
Skip a step, and the project stalls at "we can see the data" instead of "we did something about it."
Start small, then scale:
- Pick one high-value use case and a representative machine group
- Validate data quality, security, and user adoption before expanding
If you are evaluating legacy-machine connectivity, IIoT integration, or multi-plant visibility, compare options against your equipment mix and goals. A modular, cloud-enabled platform like Vistrian's Manufacturing Suite is built for that path—from machine data acquisition to plant- and enterprise-level action.
Frequently Asked Questions
What's the difference between connection and connectivity?
A connection is a single link between two devices or systems. Connectivity is the broader capability to exchange, contextualize, and use data across machines, software, and people.
What is an example of connectivity?
A machine controller sends runtime and downtime data through a gateway to an analytics platform. That platform links the data to a work order and alerts maintenance when a defined condition occurs.
What is the difference between machine monitoring and machine connectivity?
Monitoring displays machine data for people to review on a dashboard. Connectivity integrates that data with production, maintenance, quality, or scheduling systems so processes can respond automatically.
Can old or legacy machines be connected?
Yes. Gateways, protocol converters, machine logs, databases, and retrofit IIoT sensors can connect equipment decades old, though the available data set is often more limited than with modern controllers.
What protocols are commonly used for machine connectivity?
Common options include OPC UA, MQTT, industrial Ethernet, Modbus, SQL, and various fieldbus systems. The right choice depends on your equipment, network, and specific use case.
Does machine connectivity require replacing existing equipment?
Not usually. Most projects work with existing controllers through gateways and retrofit sensors. New network infrastructure or controller upgrades may still be needed in some cases.
